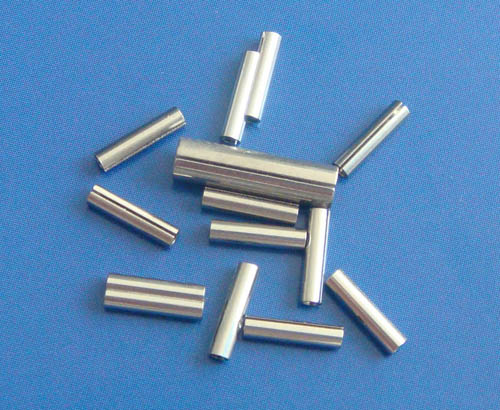

Conventional capillary and its derivatives
Conventional capillary and its derivatives

With different secondary processing requirements, we are in a position to forge, grind, debur, open slot, thread rolling, bend, etc. We can customize all kinds of products as you like.

Specification:
Material: nickel or phosphor copper
L:6.8±0.1mm
OD:1.62±0.01mm
ID: 1.24mm
Openess:0.2±0.1mm
Insertion and Extraction Force:1.0~~3.0N
Insertion loss:<0.2dB
Working temp.:-40℃~~+85℃
Durability:>1000times
SPEC: LC/PC

Material: nickel or phosphor copper
L:11.4±0.1mm
OD:3.10±0.01mm
ID: 2.495mm
Openess:0.2±0.1mm
Insertion and Extraction Force:1.0~~3.0N
Insertion loss:<0.2dB
Working temp.:-40℃~~+85℃
Durability:>1000times
SPEC: LC/PC

Dimensions
OD 3.1/ID2.490 ±0.005(mm)
L:11.4±0.1mm W:0.24g
Material: nickel
Package: blister box
Application: network access/optical adapter, etc.
SPEC: SC
Insertion loss ≤0.2(dB)  Return loss ≥45(dB)
Durability  ≥1000times

Dimensions
ODΦ0.2~Φ8mm,WT0.015~0.5mm

Product Description
(1)Material: according to customer's requirement

(2) Applications of our products
We are interested in micro capillary production which widely used in different fields, like Aviation industry, medical industry, etc.

(3) Tolerance/Precision (OD+/-0.005mm, WT+/-0.005mm, L+/-0.05mm)

(4) Minimum Order: Comply with customer's demand
(If the quantity is less than our MOQ, we may recommend you the similar dimension in stock.)

(5)Advanced equipment:
Due to its special farbrication technology and equipment, titanium capillary differs a lot to other metal capillary. Only a few companies can manufacture high precision micro titanium capillary in China. With the help of our professional engineers in our factory, we are in a position to improve our machines so that high quality products are produced according to customers' requirements.

(6) Manufacture Process
Simply, upon Strict Inspection, qualified product is selected to rinse. After rinsing, product is made through tension test and annealing until it conforms to requirement from time to time. After having the ideal product, it's cut into pieces and rinse. Then it's managed by deburring machine and rinse. After drying, product is inspected by microscope. At last, goods are perfect enough to be packed.

(7) Advantages of products
Competitive price with good quality.
Low MOQ
Customized size and spec
Convenient transportation
Short lead time (7-30days according to order qty).

(8)Delivery: Dependable
(Due to the difficulty of different kind of product, we try our best to provide you with the high quality products ASAP.)

(9)Inspection: Microscope inspection in house or by third party.
(To assure you of the high quality and our reputation, we have our products checked under the microscope.)

(10)Package:
Vacuum packed in a plastic bag, plastic bag packed in a plastic box, plastic box packed in a carton, or on requirement (totally water resistent)

(11)Transportation:
 EXPRESS, BY SEA OR BY AIR according to your requirement.

(12)After Sale Service:
Reply within 24hours, solution within48 hours.
